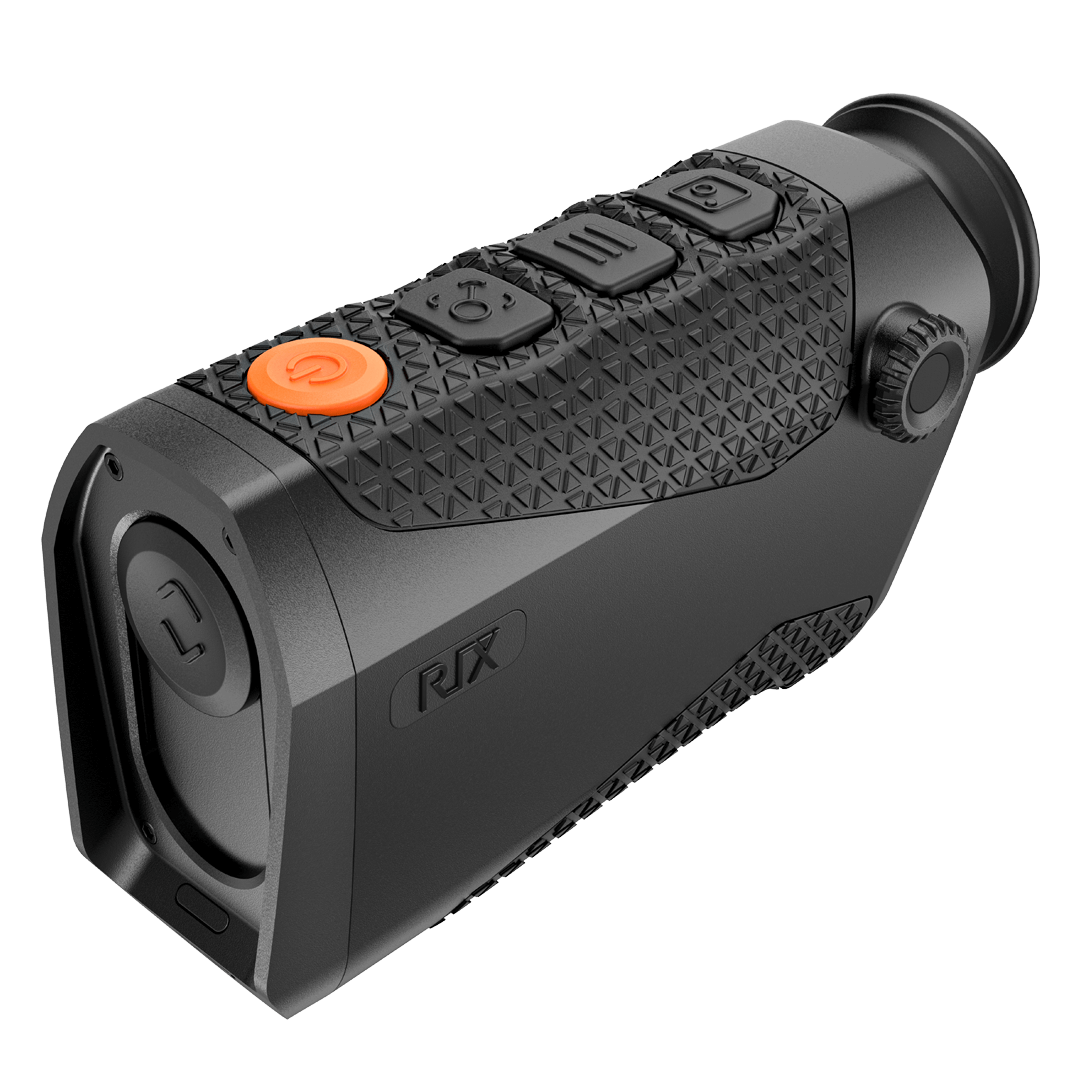

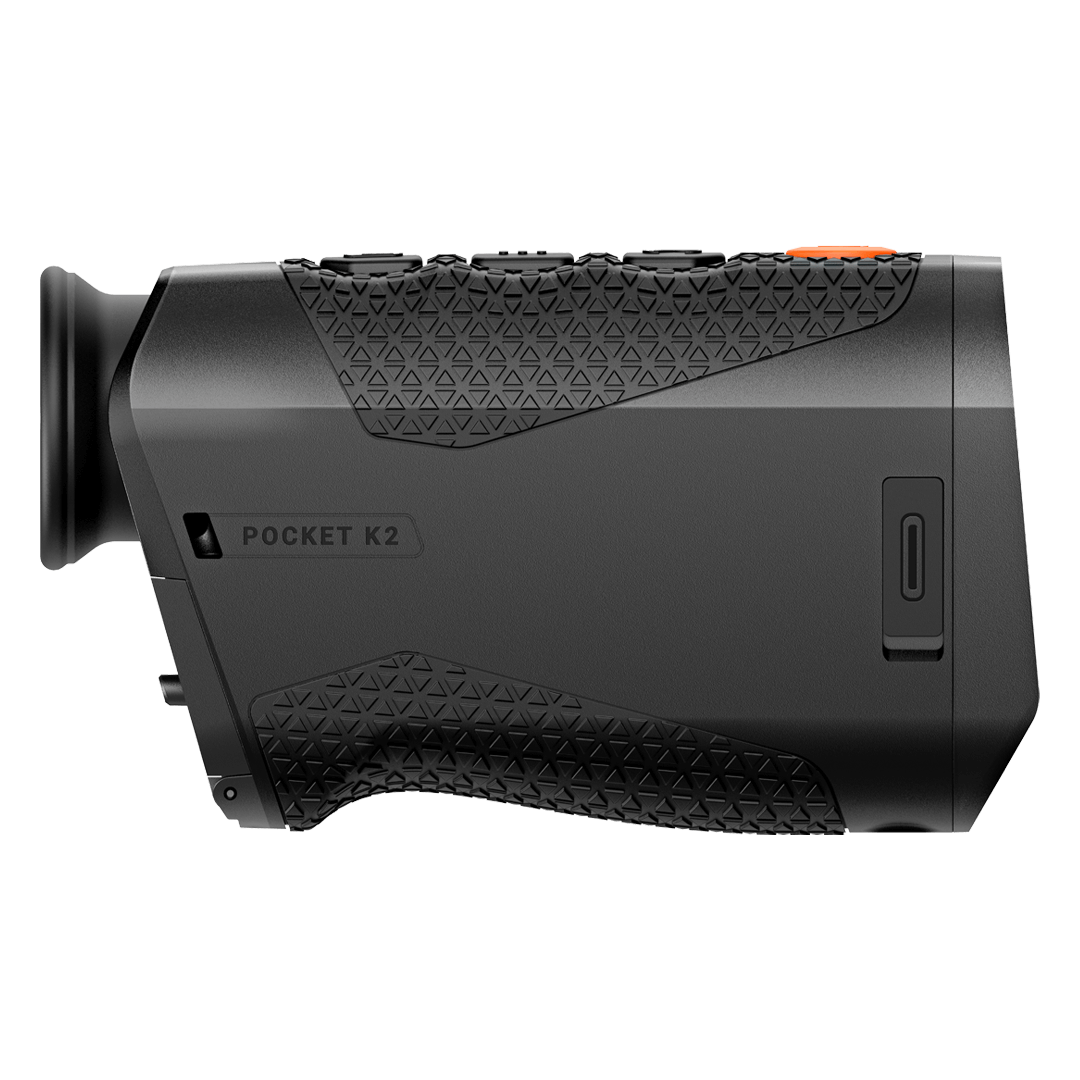

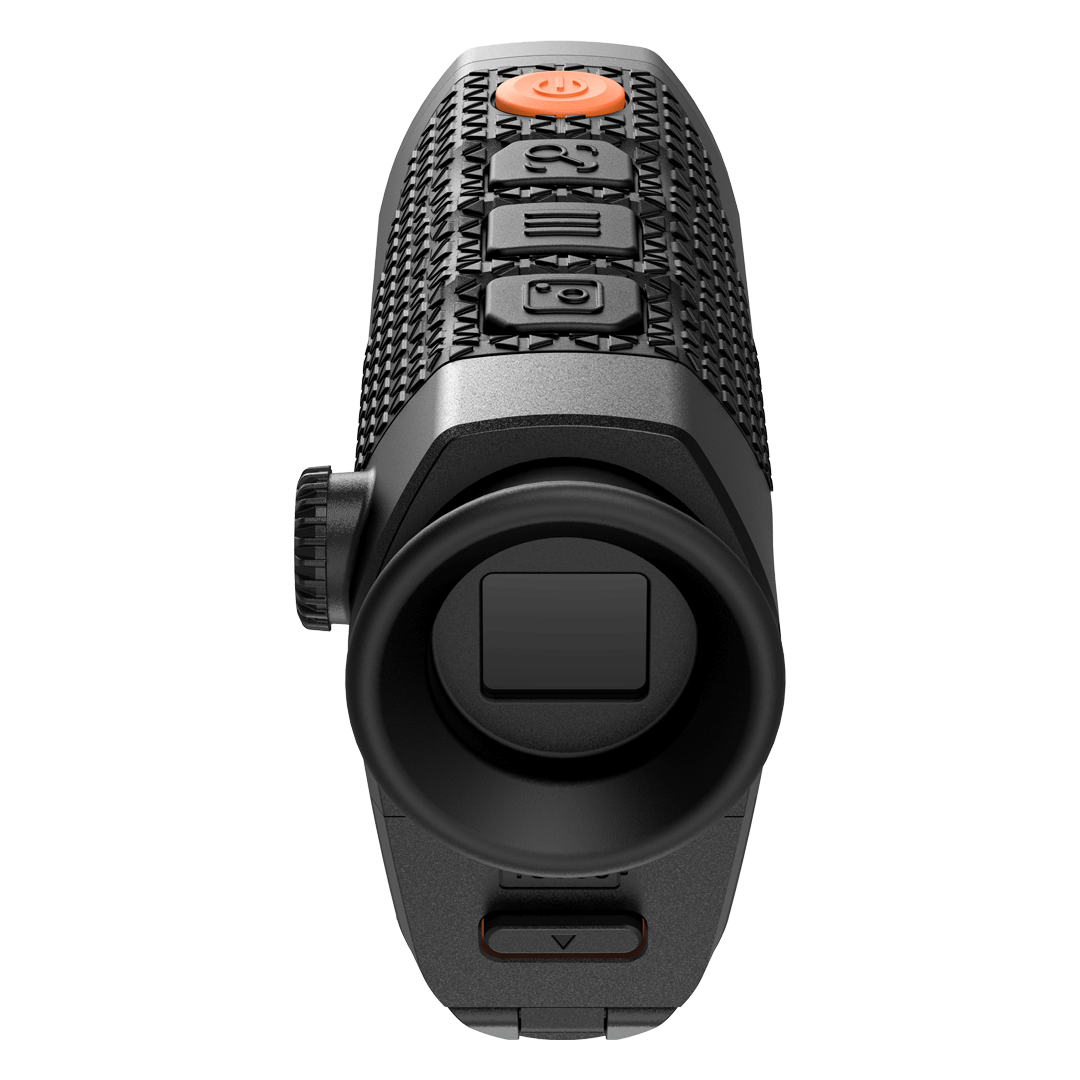

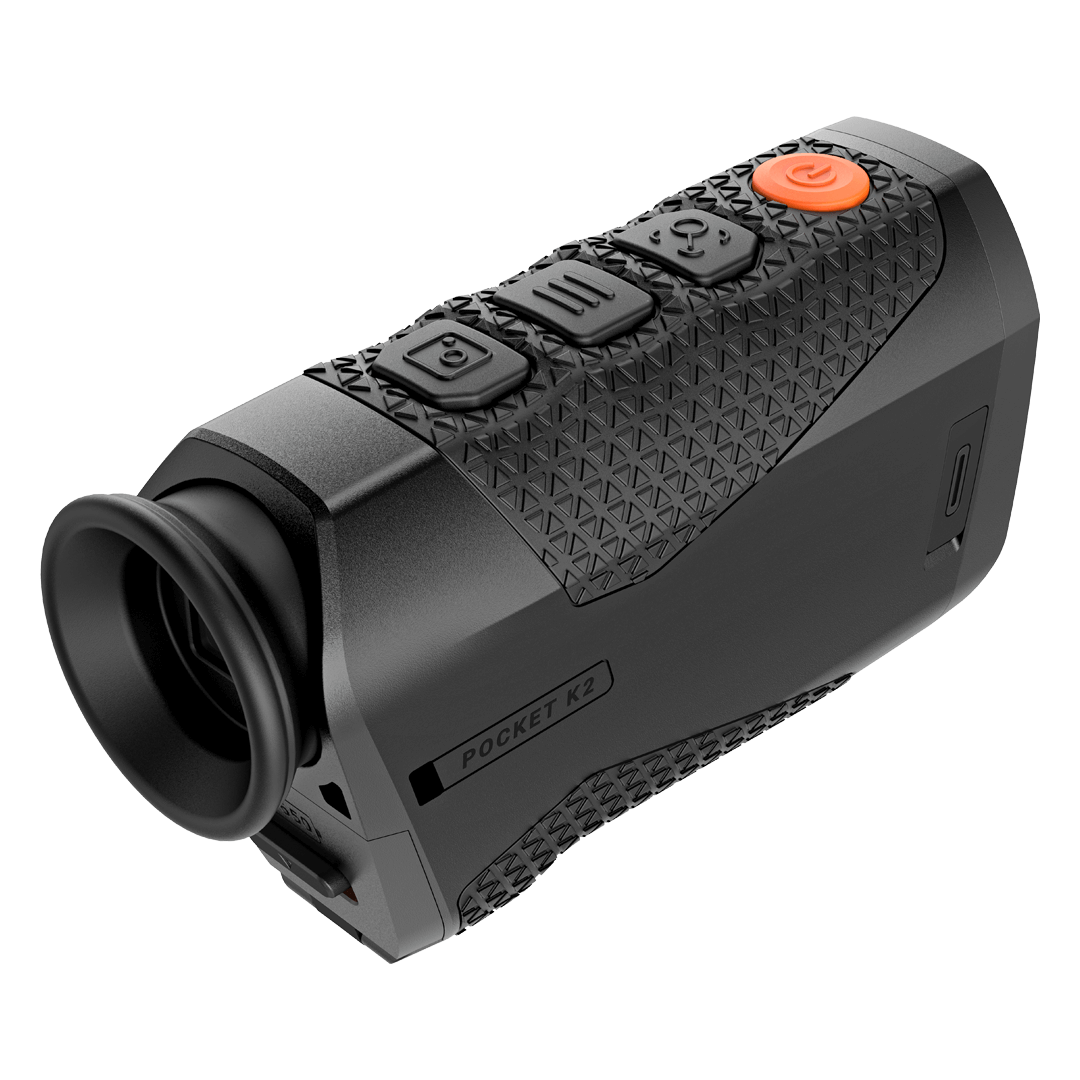

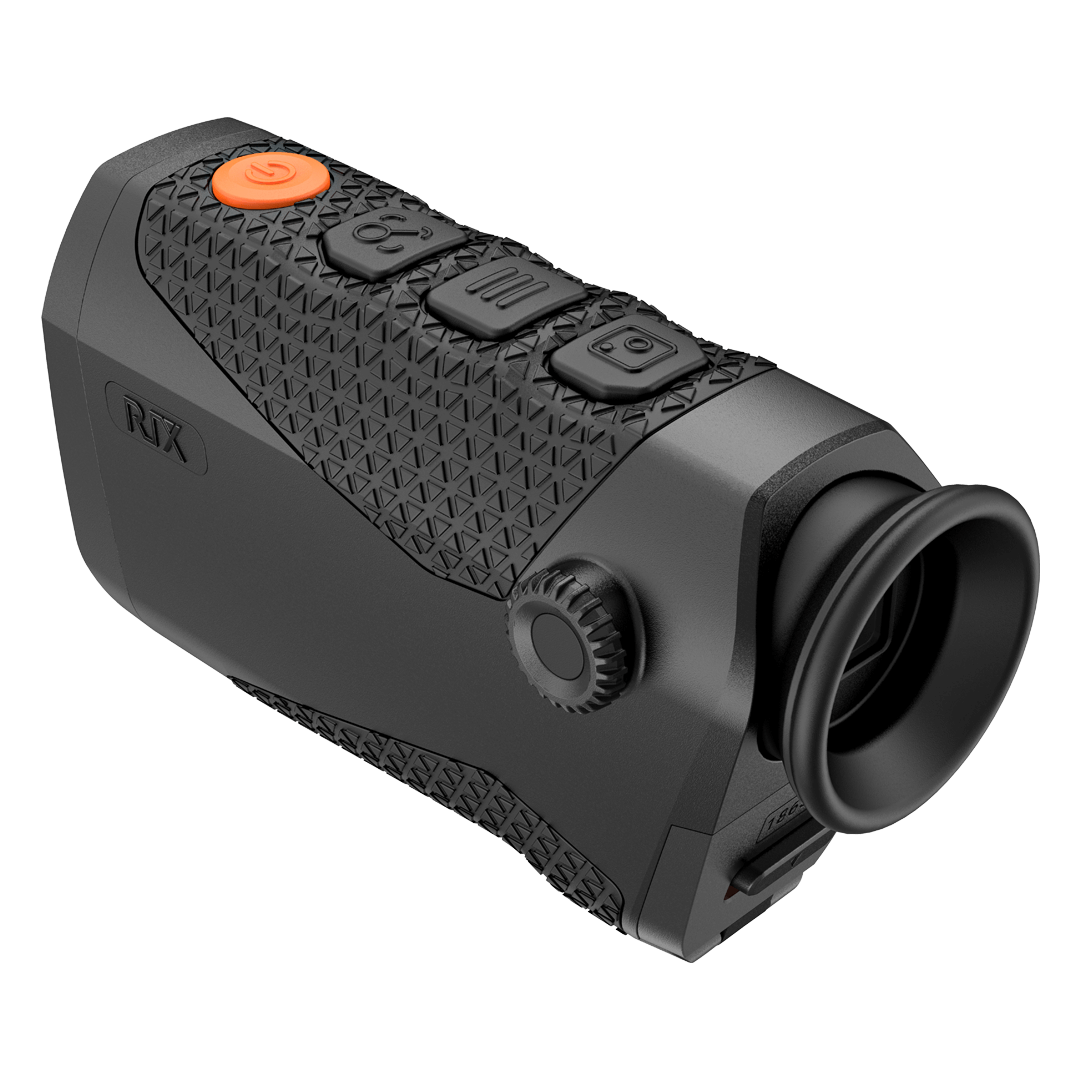

Pocket K2 Thermal Imaging Monoculars

CORE CHARACTERISTICS

Type:

VO×Uncooled

Resolution, pixels:

256×192

Pixel Pitch, μm:

12

NETD, mk:

<25

Frame Rate, Hz:

50

Type VOX Uncooled

Resolution, pixels 256×192

Pixel Pitch, µm 12

NETD, mk <25

Frame Rate, Hz 50



Optical Specifications Objective Lens, mm 9mm; F1.0

Optic Zoom, x 1.7

Field of View (H), degrees / yd @ 100 yd 19.4°/37.3yd

Digital Zoom, x 1 to 4

Eye Relief, mm 13.5

Diopter Adjustment, D -7 to +2

Detection Range, m/yd 468/512



Display Specifications Type OLED

Resolution, pixels 800×600



Wi-Fi Wireless Protocol Wi-Fi

Frequency, GHz 2.4



Video Recorder Video / Photo Resolution, pixels 800×600

Video / Photo Format .mp4 / .jpg

Built-in Memory, GB 8



Physical Specifications Degree of Protection, IP code IP67

Operating Temperature Range, °F -4 to +122

Dimensions, inch 4.9x1.8x2.9

Weight, lb about 0.44 (without battery)



Connections and Compatibilities Battery Type 18650

Capacity, mAh 3200

Operating Time on Battery Pack (at t=72°F), h Up to 7

External Power Supply, V 5V(Type-C USB)
